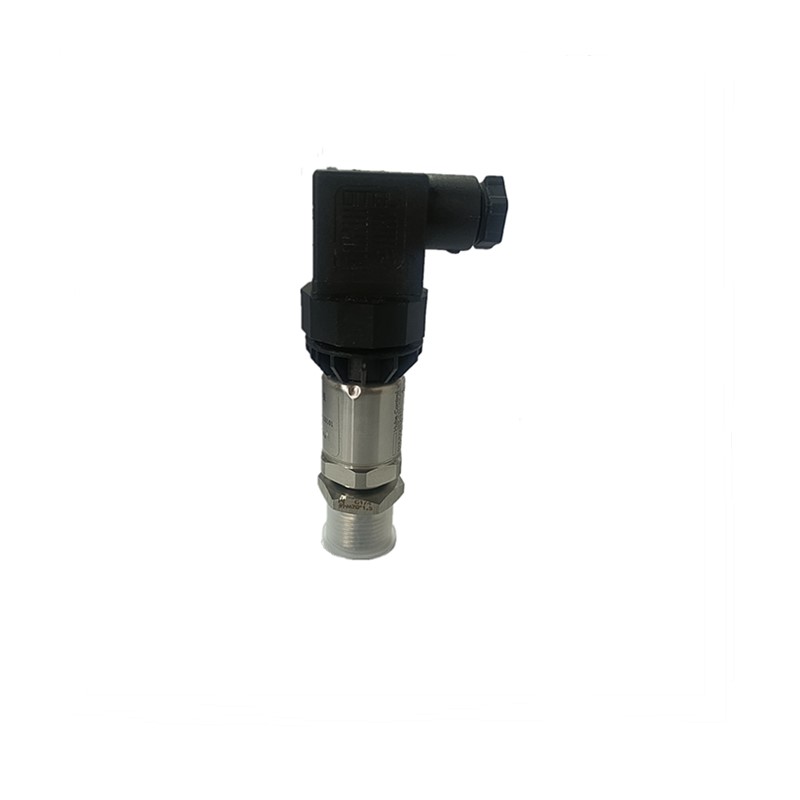

Two Wire Pressure Transmitter
High Temperature Pressure Transmitter
Best selling for measuring boiler steam pressure
Features
• Material: stainless steel
• Accuracy: 0.3%F.S
• Type: pressure transmitter
• Measurement Range: 0~4MPa(0~40Bar)
• Operating temperature: -15~+125°C
• Output signal: 4~20mA（2 wire）
• Min. order: 1 piece
Promise
Description
Reviews
Two Wire Pressure Transmitter Overview
The two wire pressure transmitter is based upon the well proven ceramic technology developed by Huba Control over 20 years ago. These pressure transmitters are suitable for applications across a broad spectrum of industries.
The two wire pressure transmitter is a new type of transmitter. The key raw materials, components and parts are all imported. The whole machine has been strictly assembled and tested. The product has the characteristics of advanced design principle, complete varieties and specifications, and easy installation and use.
The two wire pressure transmitter is used to prevent the medium in the pipeline from entering the transmitter directly, and the pressure-sensitive diaphragm and the transmitter are connected by a capillary filled with fluid. The differential pressure transmitter is used to measure the liquid level, flow and pressure of liquid, gas or steam, and then convert it into a 4- 20mA DC current signal output. The two wire pressure transmitter has high quality, high reliability and wide selection range, providing high quality and high value-added pressure measurement solutions for various process control systems.
The two wire pressure transmitter is the most commonly used sensor in industrial practice. It also is the most commonly used pressure sensor in industrial boilers. It is widely used in various industrial automatic boiler control environments to measure the pressure of the saturated steam, such as the gas fired steam boiler, oil fired steam boiler, coal fired steam boiler, biomass fired steam boiler, waste recovery boiler, CFB boiler, and so on.
Two Wire Pressure Transmitter Paremeter
| Specification parameter | |
| Medium | Liquids and gases |
| Measuring Range | -1 ... 0 – 40 bar |
| Output signal | 4~20mA（2 wire） |
| Accuracy | typ. < 0.3% fs |
| Current consumption | < 23mA |
| Power Supply | 7 ... 33 VDC |
| Protection class | IP65 |
| Operating temperature | -15~+125°C |
| Storage temperature | -50 ... +100°C |
| Ambient temperature | -30 ... +85°C |
| Pressure connection | Inside thread or outside thread |
| Electrical connection | connector DIN 175301-803-A |
| Material pressure connection |
Stainless steel 1.4404 / AISI 316L. If < 16 bar, PVDF outside thread sealed at front G ¼, G ½ |
| Electrical connection | connector DIN 175301-803-A |
| Weight | ≈150g |
Two Wire Pressure Transmitter Features
+ Compact, rugged construction
+ Negligible temperature influence on accuracy
+ Large selection of connections available
+ Saving time by quick cable mounting by the customer with swift connector
How to choose the pressure transmitter?
★ Depending on the type of pressure to be measured
Pressure types mainly include gauge pressure, absolute pressure, differential pressure, etc. Gauge pressure refers to the pressure that is less than or greater than atmospheric pressure based on the atmosphere. Absolute pressure refers to the zero position of the absolute pressure as the reference, which is higher than the absolute pressure. Differential pressure is the difference between two pressures.
★ According to the measured pressure range
Under normal circumstances, the actual measured pressure is selected as 80% of the measurement range.
★ According to the measured medium
According to different measurement media, it can be divided into dry gas, gas liquid, strong corrosive liquid, viscous liquid, high temperature gas liquid, etc. Correct selection according to different media will help prolong the service life of the transmitter.
★ According to the system operating temperature range
The temperature of the measuring medium should be within the working temperature range of the pressure transmitter. During the production process of the pressure transmitter, the temperature effect will be measured and compensated to ensure that the measurement error caused by the temperature effect is within the range required by the accuracy level. In the case of high temperature, you can consider choosing a high-temperature pressure transmitter or take auxiliary cooling measures such as installing condensing pipes and radiators.
★ According to the pressure interface form
Usually, a threaded connection (M20×1.5) is the standard interface form. If you need other sizes of the interface, we will produce and formulate them according to your requirements.
